Q-IMAGING | 큐이미징

Company Name	Q-IMAGING
Booth Number	A125
Home Page	www.q-imaging.com
Main Phone	010-2211-8709

Company Introduction

Q-imaging Co., Ltd. is a technology startup specializing in high-precision vision inspection equipment for Through Glass Via (TGV)
substrates which is used for the  advanced semiconductor package. We overcome the limitations of conventional systems with our
proprietary optical technology and non-destructive inner wall inspection methods, delivering fast and accurate TGV inspection through
edge AI-based image processing.

Introduction of item

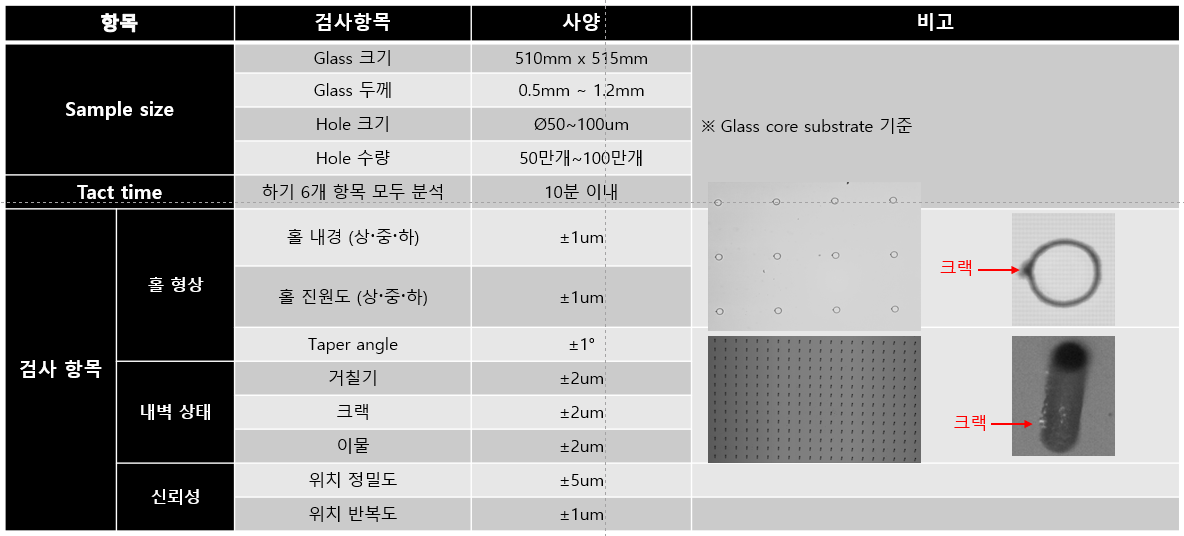

1. Vision Inspection System for TGV(Through-Glass Via)

※ Glass panel size : 510mm x 515mm
■Inspection items
1. Hole shape (Øinner /Øouter, Circularity, Taper angle) : < ±1um
2. Wall quality (roughness, crack, residue): < ±2um
3. Tack time: < 10min
4. Reliability (position accuracy, repeatability): < ±1um

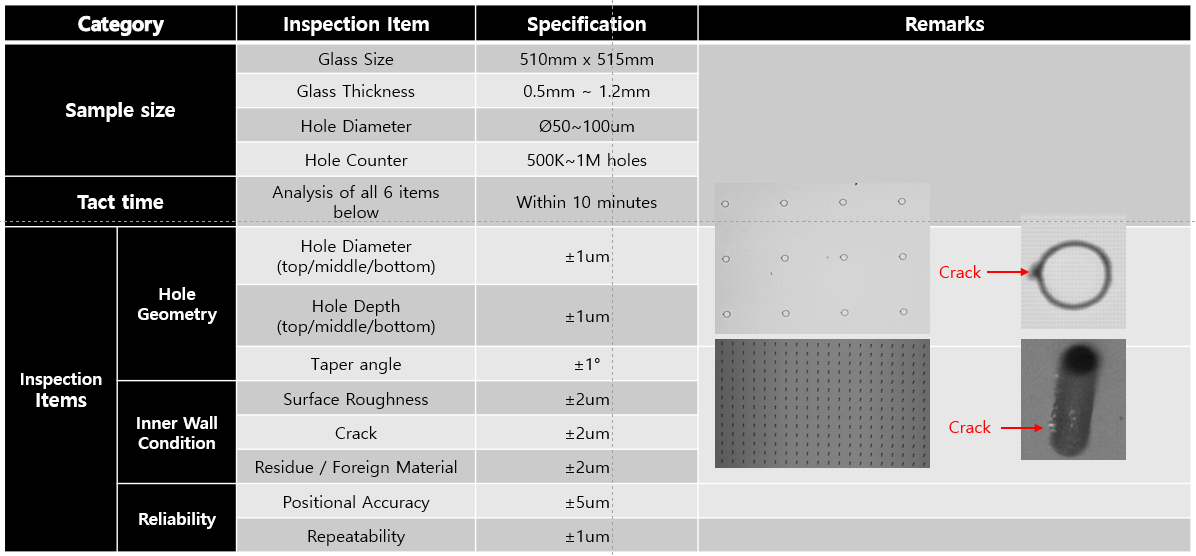

2. Vision Inspection System for TGV(Through-Glass Via)

※ Glass panel size : 510mm x 515mm
■Inspection items
1. Hole shape (Øinner /Øouter, Circularity, Taper angle) : < ±1um
2. Wall quality (roughness, crack, residue): < ±2um
3. Tack time: < 10min
4. Reliability (position accuracy, repeatability): < ±1um
