Company Introduction

Tesla Magnetics specializes in designing and manufacturing magnetic socket former for semiconductor test, such as PCR sockets, using
proprietary electromagnet and permanent magnet technologies.

Introduction of item

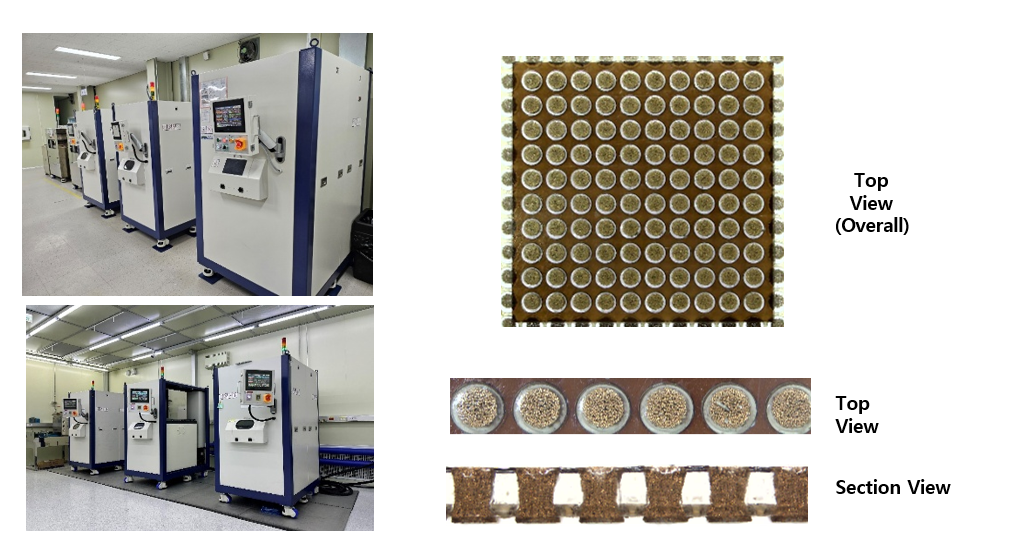

1. MSSF Series(Magnetic Silicone Socket Former)

The MSSF Series is a magnetic socket former (electromagnetic socket forming machine) used to manufacture various elastomer test
sockets, such as PCR (Pressurized Conductive Rubber) sockets for semiconductor testing. It features a dedicated control system that
delivers a uniform magnetic flux to the whole work area of the socket mold, offering a distinctive advantage of maintaining consistent
magnetic strength over time without degradation.
Additionally, it allows for flexible control of both the direction and intensity of the magnetic field, customizable to desired levels. The
system is designed as a one-stop process from material loading to forming, and operators can use a touch panel to design and save
process parameters according to the target product or load previously saved design files for production.
The MSSF Series consists of magnetic forming machines capable of delivering a magnetic flux density of 2.0 Tesla (20,000 Gauss) as
standard, with optional outputs of 2.3 Tesla (23,000 Gauss) and 2.5 Tesla (25,000 Gauss).
