AP SYSTEMS | 에이피시스템

Company Name	AP SYSTEMS
Booth Number	D121
Home Page	www.apsystems.co.kr
Main Phone	031-379-2700

Company Introduction

AP Systems Co., Ltd. has secured cutting-edge equipment technologies and differentiated solutions not only for semiconductor
manufacturing equipment that integrates Thermal, Laser and Plasma technologies but also for OLED, Secondary Cell Battery, and Solar
Cell.

Introduction of item

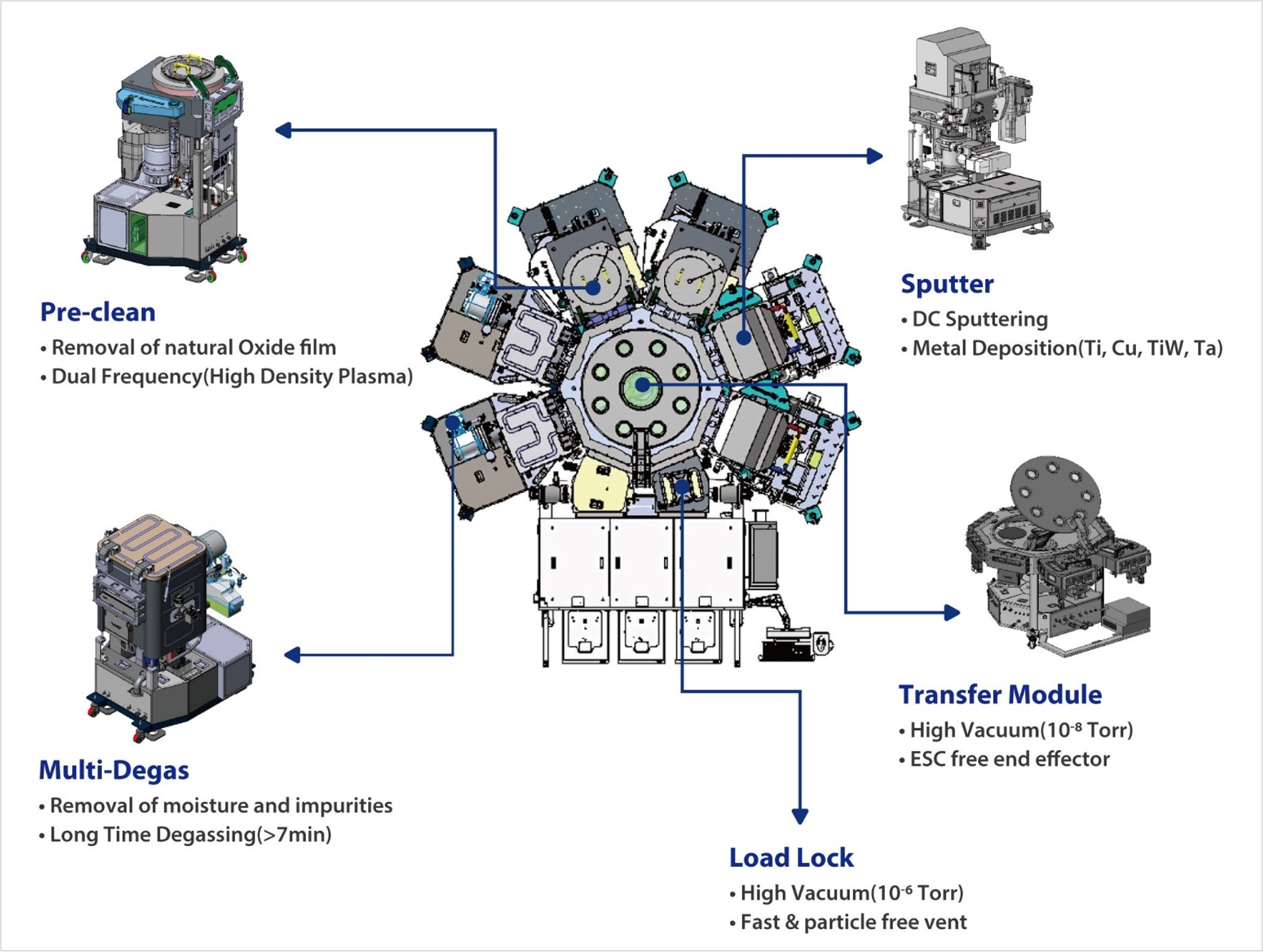

1. KORONA TM PVD (Sputter)

With the trend of increasing capacity, speed, and miniaturization of semiconductor devices, semiconductor packaging technology is
also shifting from traditional wire bonding to flip-chip methods. Recently, it has been evolving into FOWLP (Fan-out Wafer Level
Package), FOPLP (Fan-out Panel Level Package), and 3D packaging. AP Systems supplies sputtering equipment for the production of
metal films (CPB UBM, RDL) to customers in line with the advancements in semiconductor packaging technology.

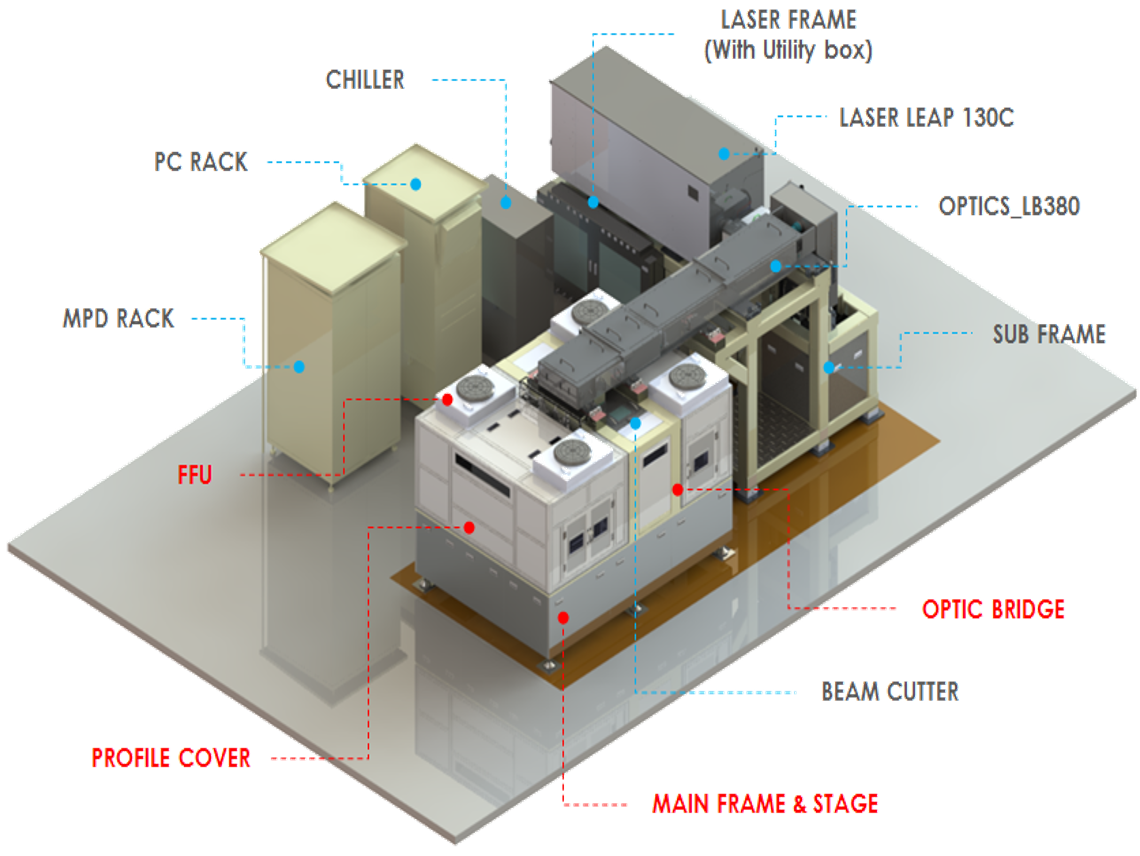

2. KORONA TM LD (Laser De-bonder)

It is manufacturing process equipment that separates device substrates and carrier substrates using laser, optical technology, and
process modules in semiconductor HBM / WLP / PLP manufacturing processes.

Features
- Field proven high power Excimer Laser and DPSS Laser system
- Wafer / Glass-Panel level Debonding
- Homogenized line beam delivery system / Spot beam Delivery System
- Compact system design for small foot print
- Complete automation & control solution with EasyCluster™ software
