MIRTEC | 미르기술

Company Name	MIRTEC
Booth Number	D124, E124
Home Page	www.mirtec.com/
Main Phone	031-202-5999

chevron_right Company Introduction

-

chevron_right Introduction of item

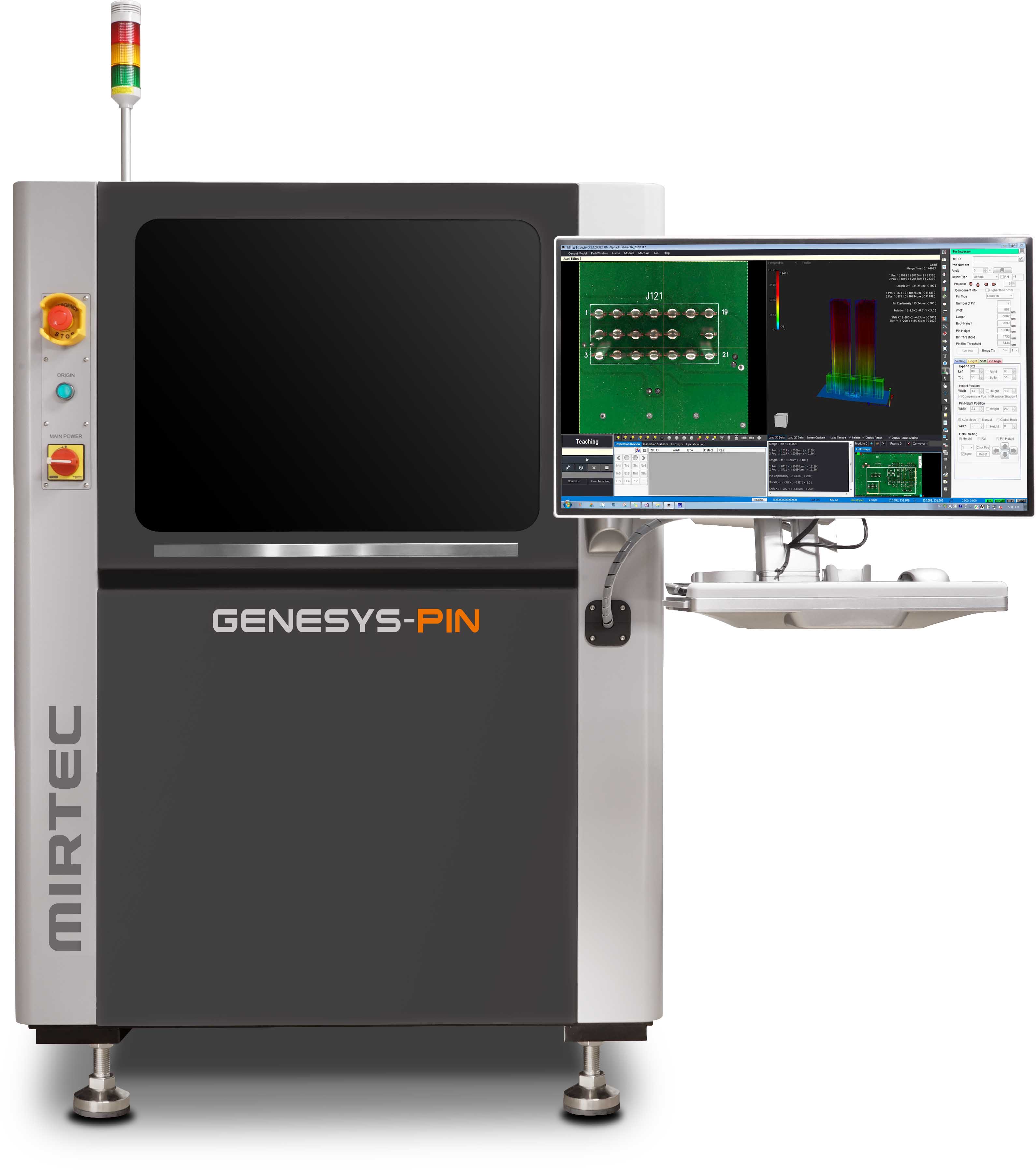

1. 3D Pin Inspection Machine

GENESYS-PIN

ㆍCamera Resolution : 12 Megapixel CXP Camera
ㆍLens Resolution : 15㎛
ㆍLighting System : 9CH RGB Light
ㆍMax. Inspection Height : up to 50㎜ (with Z-Axis)
ㆍInspection Items : Pin Height, Shoulder Height, Shoulder-pin Height, Coplalarity, Missing, Offset(Tilt),
Distance, Distance from master pin, Inner/outer diameter of fork pin
ㆍH/W Option : 18M Side Camera, Double sided PCB Inspection, Triple Stage Conveyor

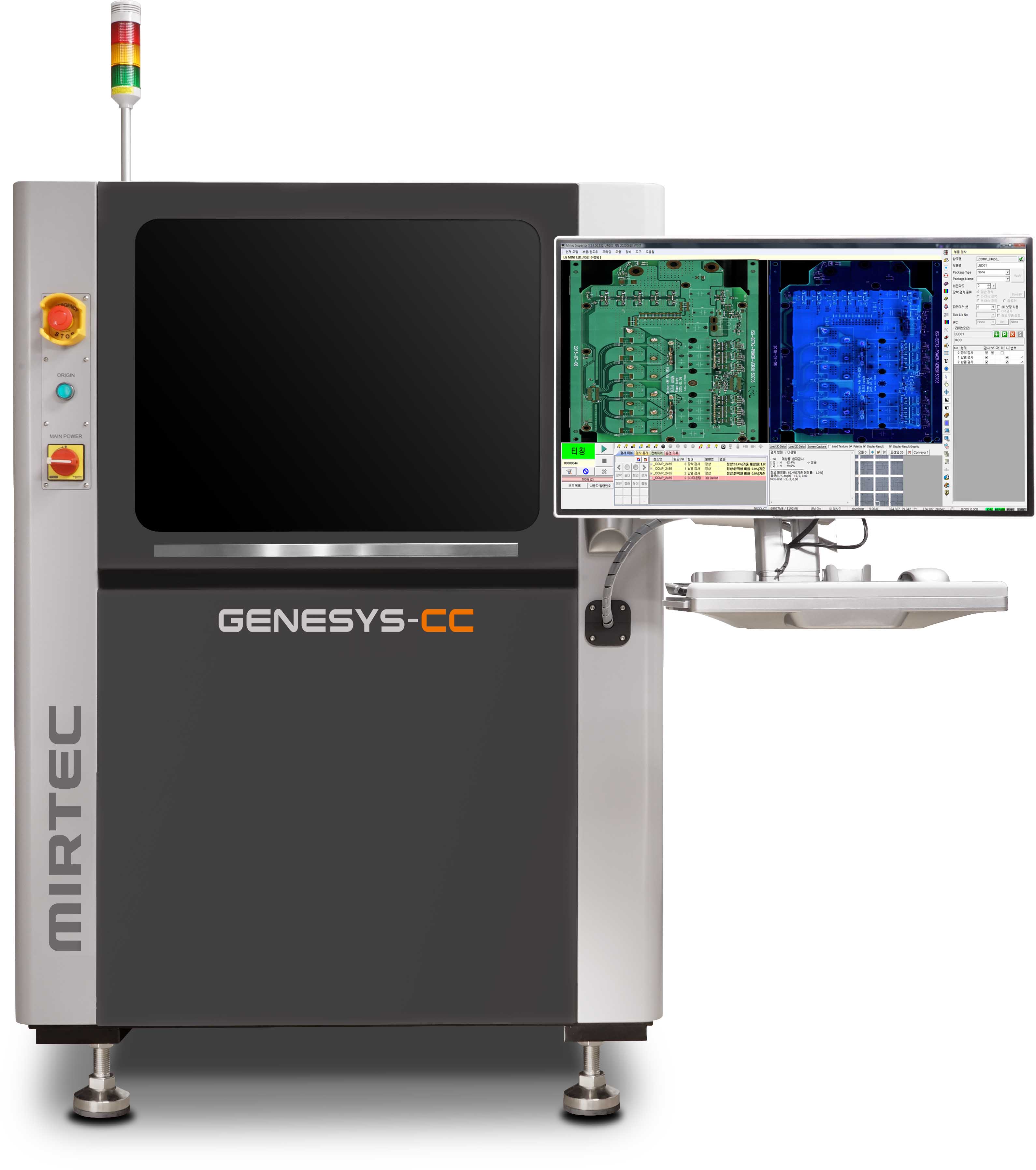

2. Conformal Coating Inspection Machine

GENESYS-CC

ㆍCamera Resolution : 15 Megapixel CXP Camera
ㆍLens Resolution : 15㎛ / 10㎛
ㆍLighting System : 8 Phase RGBW+UV Light
ㆍInspection Items : Coverage, Non-coverage, Bubble
ㆍH/W Option : 18M Side Camera, Double sided PCB Inspection, Triple Stage Conveyor
